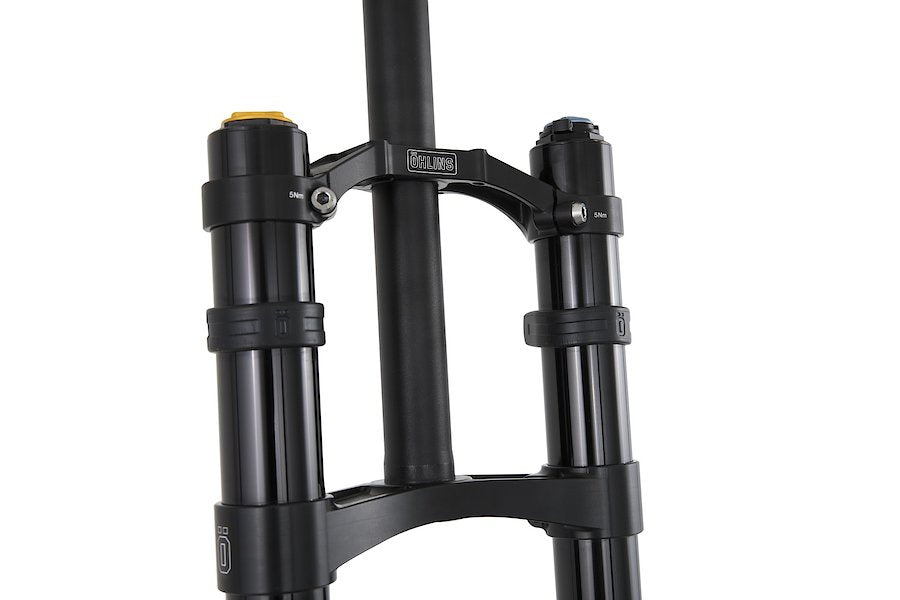

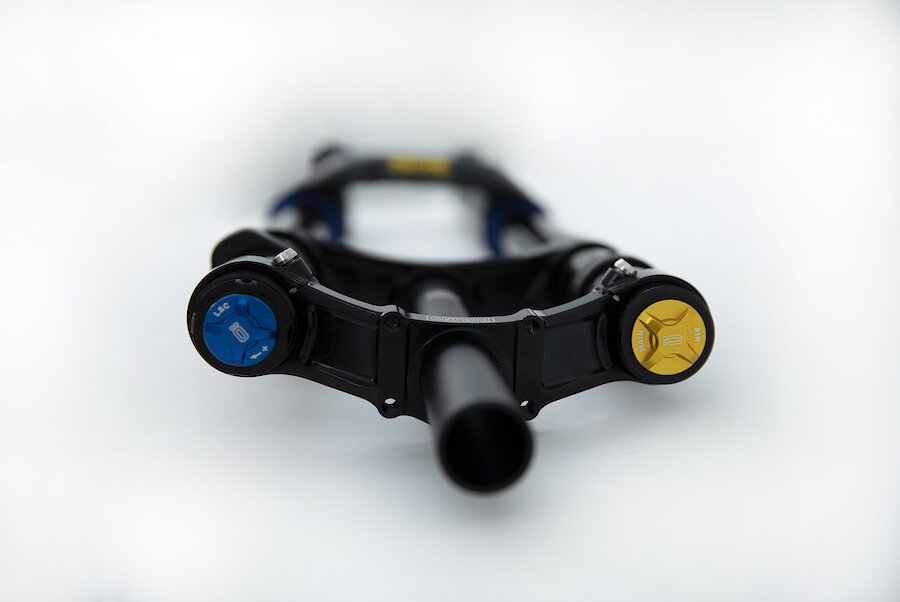

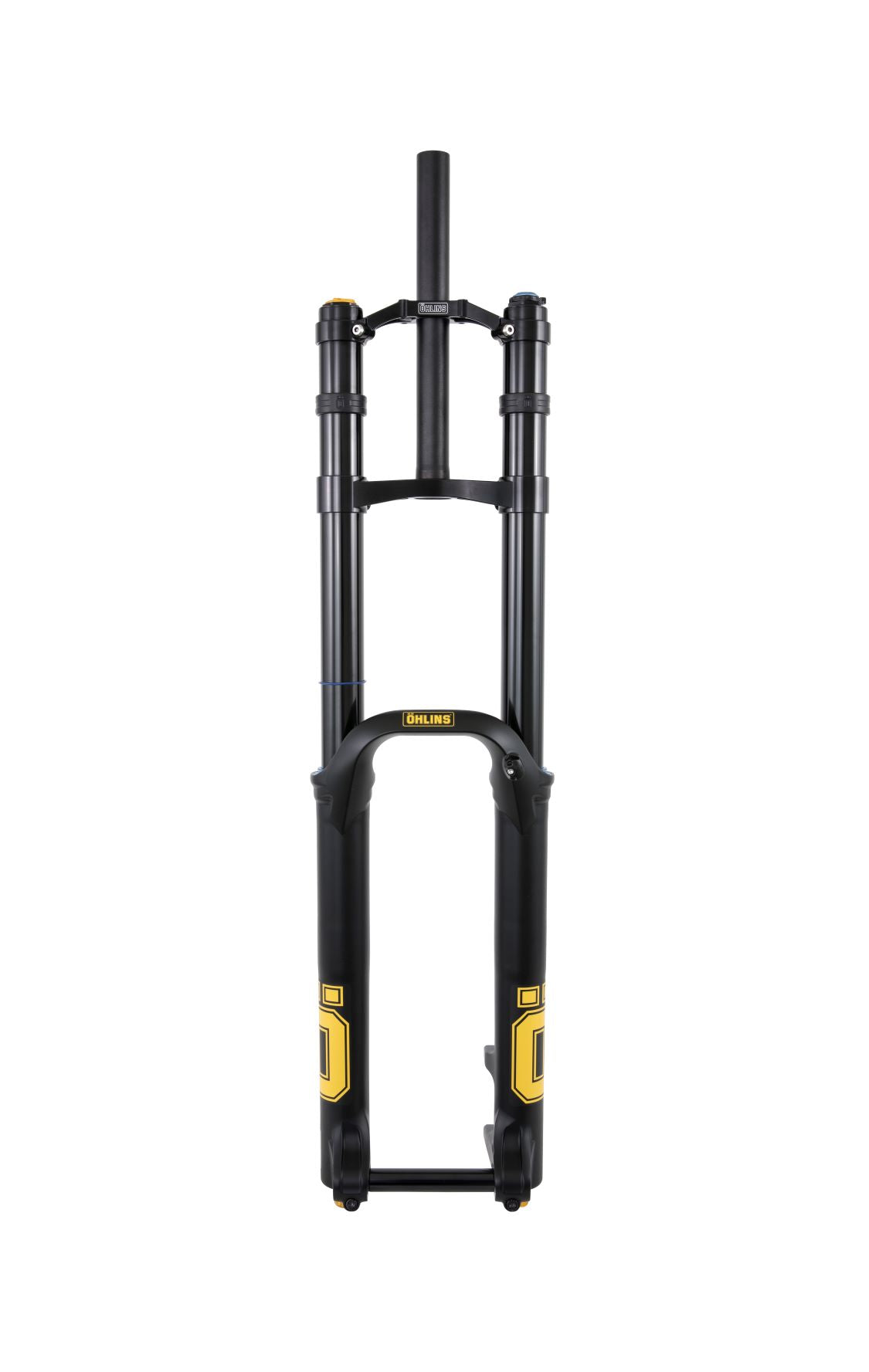

Öhlins has implemented a number of exciting upgrades to their popular DH38 platform, launching a new iteration of the fork: DH38 M.1. It’s capable of absorbing even the smallest of bumps as well as coping with the big drop offs, making for a smoother, faster, more controlled run.
The DH38 platform is used by multiple Downhill World Champion and World Cup winner LOIC BRUNI, who will be pushing these new features to the limit as soon as the racing season is back on track. The new adjustments make downhill runs faster, with more control and comfort whether it's fitted to a pedal-powered or e-MTB gravity rig.
The Öhlins DH38 M.1 is the Winner of the 2020 Pinkbike Award: Suspension Product of the Year. Watch the full video here!
Technical Specifications:
- 180 mm stroke (rebuild to 120 - 200 mm possible)
- Max. tire sizes 29 x 2,8 and 27,5 x 3,0
- Designed for 200 mm brake discs
- 110 mm Boost hub standard
- Floating axle for minimum friction
- Offset 46/50/54/58 mm
- E-bike approvedC
- Cartridge based damper and air spring
- Race proven setting bank
- Fully servicable and rebuildable
- 2 years limited warranty
Adjustment:
- Spring rate and progression external via air pressure
- 5-click high speed compression damping
- 15-click low speed compression damping
- 15-click rebound damping
Purchased parts package:
- DH38 Race Fork 200 mm
- Axle DH Boost 20x110
- Owners manual
- Fork Crown Set (optional)
Optional Fork Crown Set:
- Offset 46: part no. 19233-08
- Offset 50: part no. 19233-12
- Offset 54: part no. 19233-16
- Offset 58: part no. 19233-20
